Geist Monitored Unit Level MN05M4W1-36CF18-3TL21A0A10-S-A - Power distribution unit - AC 120/208 V - 8.6 kW - 3-phase WYE - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L21-30P - output connectors: 36 (IEC 60320 C13/C19) - 0U - black powder coat - TAA Compliant

• Efficient power distribution
  The unit provides a total output power of 8.6 kW, allowing for efficient distribution across multiple devices with a maximum electric current of 30 A.
• Robust remote management capabilities
  Supports various remote management protocols including SNMP, HTTP, and SSH, facilitating seamless power monitoring and management.
• Comprehensive safety features
  Equipped with circuit breakers and a hard reboot button, ensuring complete protection and ease of use in case of power issues.
• User-friendly interface
  Features an LED display and multiple connection interfaces like RS-232 and USB, enhancing the user experience during operation.
• Compliance with standards
  The product meets UL, RoHS, and FCC standards, ensuring reliability and safety across various applications.

The Vertiv Geist Monitored Rack PDU VP4N30AN is a 30A, 120V/208V WYE, 3-phase upgradeable rack power distribution unit with input power monitoring. It has 36 Combination C13/C19 outlets, and an L21-30P plug providing 8.6kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

• The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

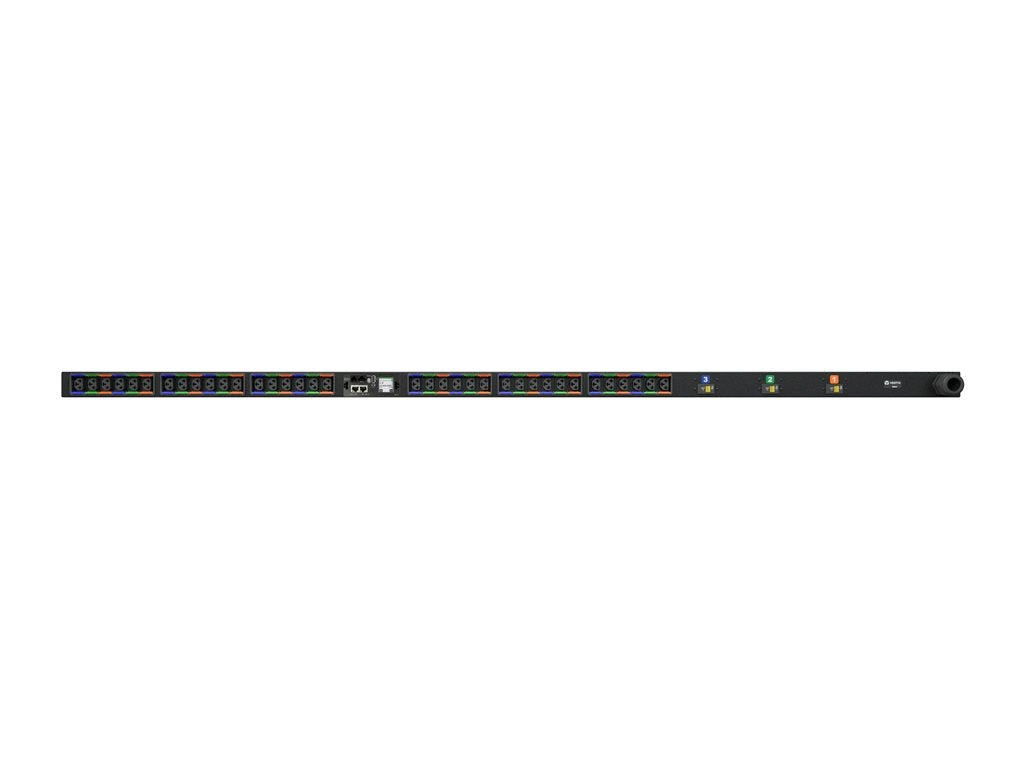

• VP4N30AN is a vertical rack mount PDU with 36 Combination C13/C19 outlets and an L21-30P plug

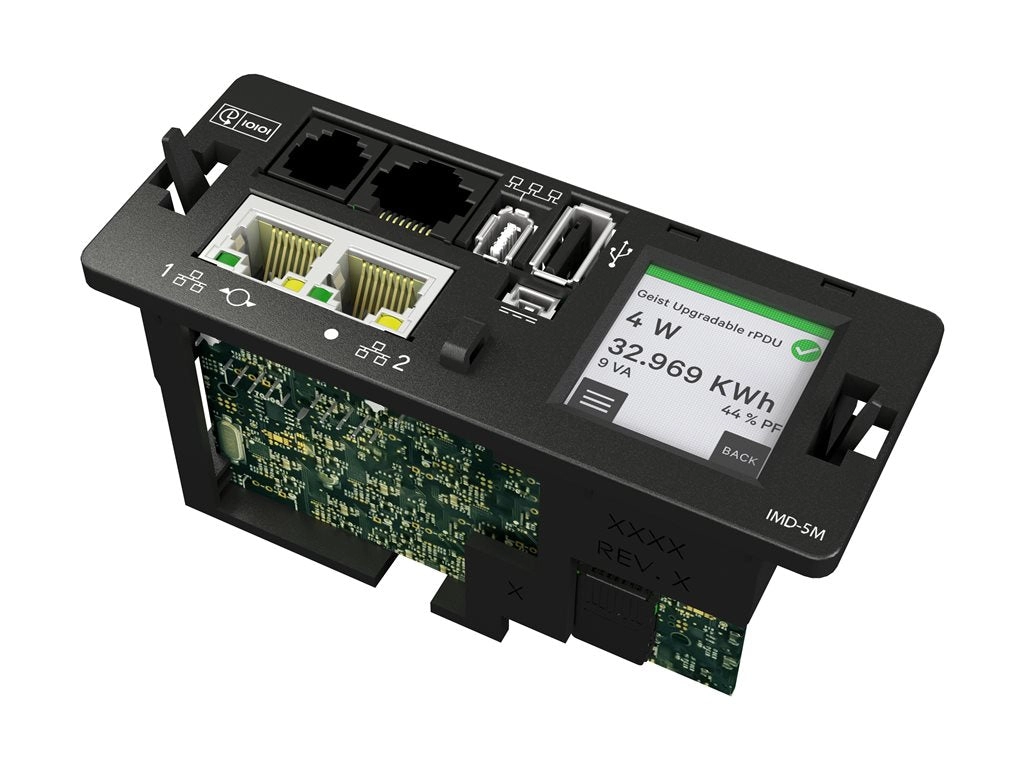

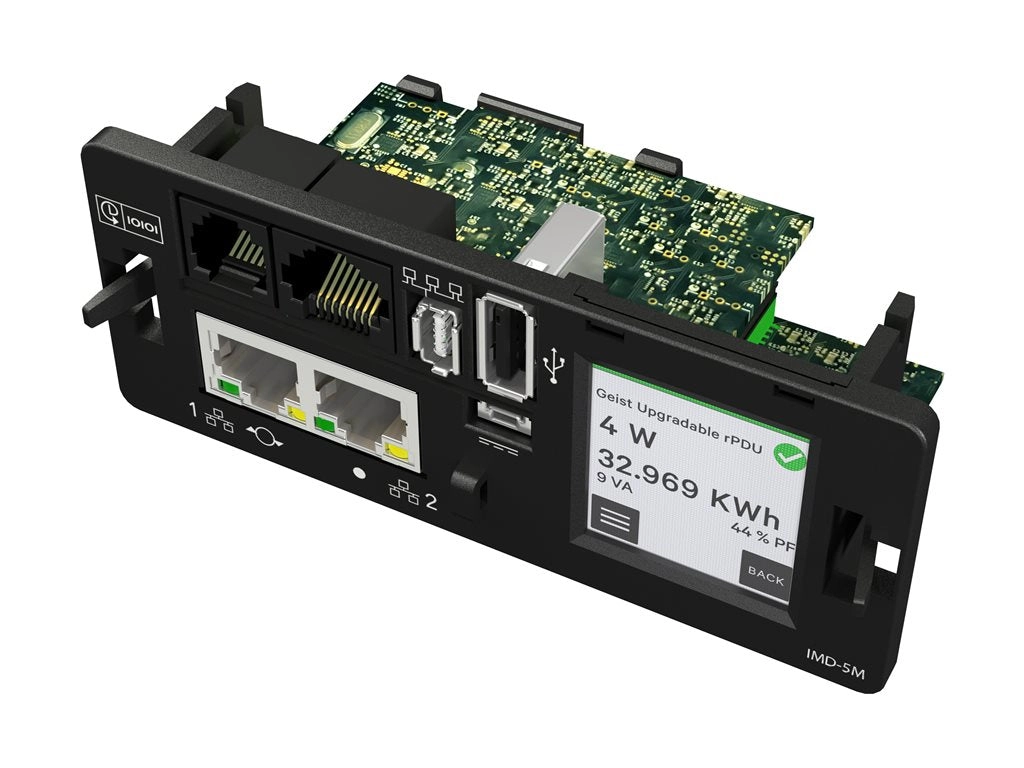

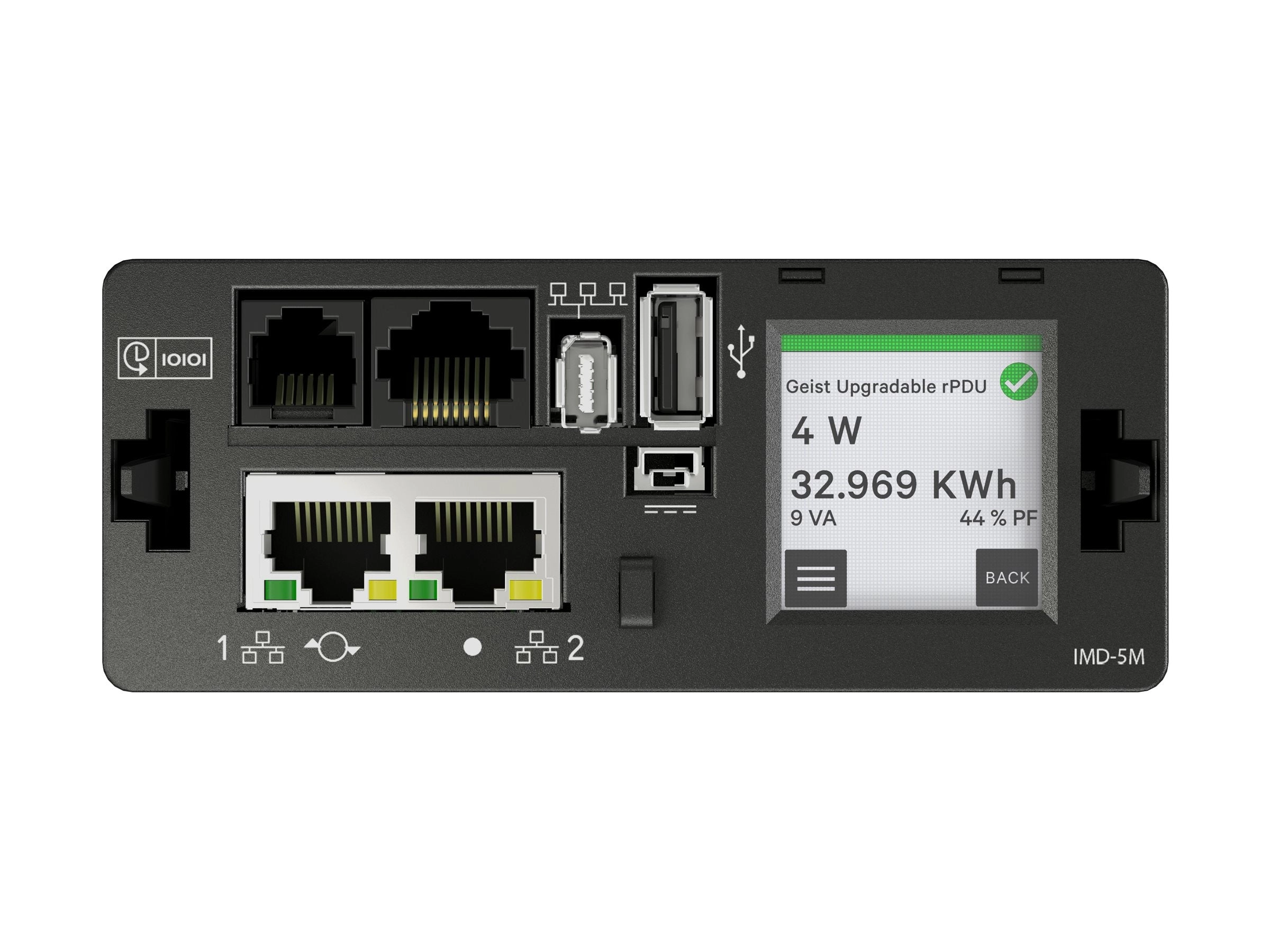

• Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
• Helps ensure that data and operations are protected with the enhanced security features
• Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
